Honda/Acura OBD1 Coil on plug conversion kit
Load image into Gallery viewer, Honda/Acura OBD1 Coil on plug conversion kit
Load image into Gallery viewer, Honda/Acura OBD1 Coil on plug conversion kit
Load image into Gallery viewer, Honda/Acura OBD1 Coil on plug conversion kit
Honda/Acura OBD1 Coil on plug conversion kit
Regular price
$450.00
Sale price
$420.00 Sale
Engine type
Distributor type
Installation/soldering service
Buy now with PayPal
Buy with
More payment options
Are you running a highly modified engine (Turbo/NA/Nitrous)? Or maybe you're just trying to do some preventative maintenance all while adding aesthetic value to your car? Upgrade your ignition system without breaking the bank!
The Total Race Innovations OBD1 Honda/Acura "COP" Coil on Plug conversion Kit is just what you've been looking for!
The MOST sophisticated Kit out in the market today! Why? Quite simple. No need for an expensive standalone engine management system like AEM, MOTEC, HALTECH or LINKS ecu and unlike the Hondata CPR there is no need for a Hondata s300 just to run coils on your car. No need to hack up your wiring harness or install any externally mounted modules which can be a pain to install, mount, or hide.
Simply send out your Ecu out to us and we will install the hardware for you!
Helping your Car/Engine in many characteristics such as:
DRIVE-ABILITY
Smoother idle
Faster startups
Better throttle response
Increased MPG
Increased reliability
Increased Power
PERFORMANCE
Constant high intensity Spark throughout the rpm range
Increases Dwell time compared to a single coil system (the length of time in distributor cam rotational degrees that the ignition module is turned on and the primary circuit of the ignition coil is being charged, more dwell time = a stronger discharge/spark)
Fights spark blowout allowing for more boost and fuel esentially unleashing more power!
Lower engine operating temperature
Reduces and fights detonation burning fuel thoroughly

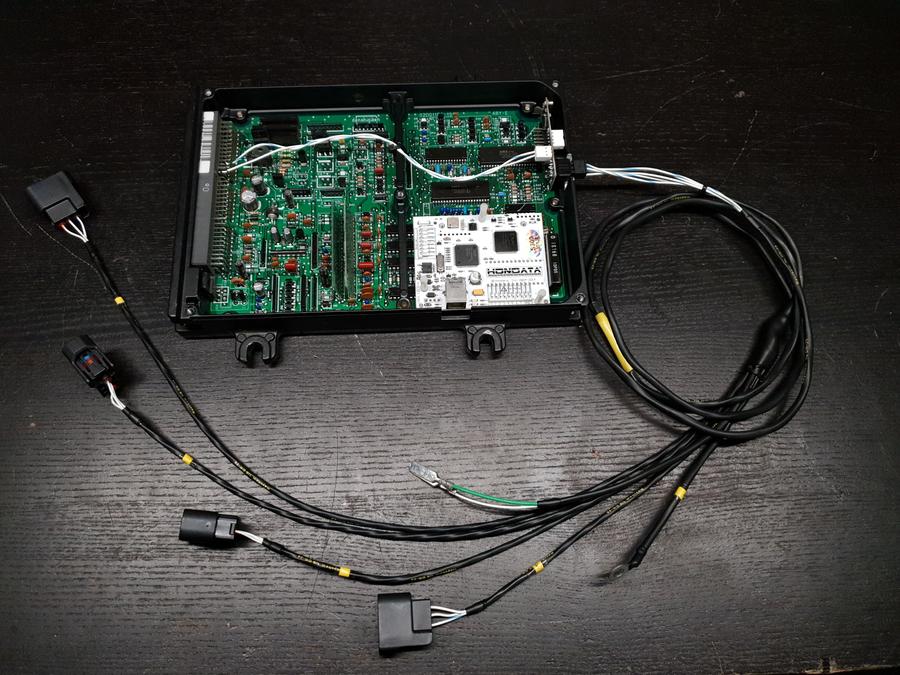

Our KIT includes:
Plug and Play Total Race Innovations MilSpec Coil-on-Plug conversion harness
Hondarulez COP mini board
Digital installation instructions
Harness is assembled using m22759 wire, Raychem DR-25, Raychem SCL, and high quality connectors for reliability/durability assurance you can count on
Additional accessories/parts needed to successfully Run this Kit:
4x K20 or D17 ignition coils (K20 coils are the Most common and easiest to install on B and H series engines, D17 work best on D series engines using the D17 valve cover) sold separately
Resistor type Spark plugs. sold separately
Optional accessories/parts to compliment the installation:
Coil on plug mounting plate. sold separately
Distributor Cap delete. Sold separately
Our Kit is compatible with:
ECU TYPE
All USDM OBD1 ecu's (P28, P06, P72, P75, P30, ect) with tuning software such as but not limited to Hondata, EcTune, Neptune, and Chrome. Also works with a completely stock Ecu with an empty FC1 knock board slot like P06, P28 and P75.
ENGINE TYPE
Works with ALL B-Series (B16, B17, B18, B20), D-Series (D15, D16, D17), H-Series (H22,H23) and F-Series (F20,F22,F23) engines running OBD1 ecu.
CAR MODEL
Our kit has been successfully installed in Honda/Acura's ranging from years 1988-2001 Running OBD1 Ecu's like Honda Civic, Acura Integra, Honda Accord and Honda Prelude. (Kit might also work on many other "Custom" applications running Honda engine with Honda Ecu as mentioned above)
SHIPPING
Our kits are ready to ship! Simply send your ecu out to us so we can install/solder the Hondarulez Cop mini and ship back along with our kit ready for you to Plug and Play. Please give us 2-3 business days to ship your kit out after we have received and serviced your ecu.
Cant wait? or simply can't ship out your ecu?
Have your local tuner install this for you! or perhaps you are mechanically inclined and feel confident enough to tackle this job? We are sure that no matter which option you choose to go with that you will be completely satisfied.
Note: Please make sure to select the right engine type and distributor type before placing your order. If you are having trouble making the right selection please contact us so that we can further assist you at [email protected]
WARNING: Make sure to use Resistor type sparkplugs ONLY.
This Product is for OFF-ROAD USE ONLY!!
Product Disclaimer
Install product at your OWN risk, TotalRaceInnovations.com designed this product to be installed by mechanically inclined individuals with common electrical automotive knowledge. By buying this product you understand the Terms and Conditions and release TotalRaceInnovations.com of any liability that may arise from misuse, improper installation or user error related incidents.
